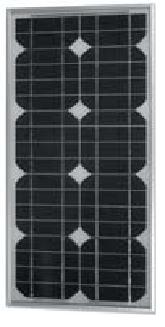

The AE series-J photovoltaic modules provide cost-effective
photovoltaic power for DC loads with moderate energy requirements.
With 36 cells in series, they charge batteries efficiently
in virtually any climate. These modules are made with
monocrystalline cells laminated behind tempered glass with
aluminum frames.
The 50-watt and larger modules have an industrial-grade conduit-
ready junction box on the back that has knockouts for two
standard 1/2" conduit fittings. Typical commercial applications
of these modules include remote telemetry, instrumentation
systems, security sensors, signals, and land-based navigation
aids. The 5- to 20-watt modules have a 10-year power output
warranty. The 50-watt and larger modules have a 25-year power
output warranty. Made in China.
Peak Power (watts)
50
Peak Power Voltage (volts)
17.32
Peak Power Current (amps)
2.87
Open Circuit Voltage (volts)
21.53
Short Circuit Current (amps)
3.22
Dimensions (inches) L x W x H
28.3" x 21.85" x 1.3"
|
