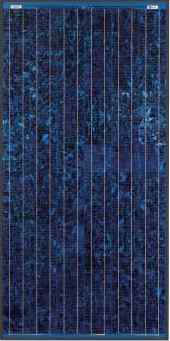

BP 380U Solar Panels (80 Watt)

BP 380U Solar Panels (80 Watt)

BP 380U Solar Panels (80 Watt)

High-efficiency photovoltaic module using silicon nitride multicrystalline silicon cells. Performance Rated power (Pmax) 80W Power tolerance +/- 5% Nominal voltage 12V Limited Warranty1 25 years Configuration S BP 380S Clear universal frame with output cables and polarized Multicontact (MC) connectors L BP 380L Unframed laminate version of BP 380S U BP 380U Clear universal frame with standard junction box Electrical Characteristics2 BP 380 Maximum power (Pmax)3 80W Voltage at Pmax (Vmp) 17.6V Current at Pmax (Imp) 4.55A Warranted minimum Pmax 76W Short-circuit current (Isc) 4.8A Open-circuit voltage (Voc) 22.1V Maximum series fuse rating 15A (20A for U version) Maximum system voltage 600V (U.S. NEC) 1000V (TÜV Rheinland & IEC 61215 )

Price: $469.95
Buy Product Online | Visit Store Home
