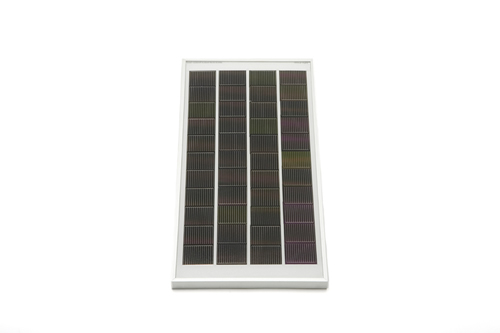

GSE Solar Power Module - 6 Watt The GSE Solar Power Module uses high efficiency thin-film Copper Indium Gallium DiSelenide (GIGS) solar cells encapsulated in advanced polymers. This is the next generation of solar modules intended for off grid applications needing reliable lower wattage power designed to last for years. Product Features GSE Solar Power Modules use Copper Indium Gallium DiSelenide (CIGS) technology: * High efficiency thin-film technology * Cell efficiency increases after outdoor exposure * Highest daily energy yield per rated watt * Proven outdoor reliability * CIGS technology has no light-induced degradation * CIGS technology is superior under low light level conditions * Operating voltage designed for optimal charging of lead-acid batteries Applications GSE Solar Power Modules can be used in these applications: * Sailboat charging systems * Railroad signals * Recreational vehicles * Emergency communication systems * Water quality and environmental data monitoring systems * Microwave/Radio repeaters stations * Aviation obstruction lights * Desalination systems * Medical facilities in rural areas * Remote lighting Physical Features GSE Solar Power Modules have these physical features: * Lightweight design including frame * Standard frame for easy installation * Low iron tempered glass from maximum light transmission and weather resistance * Sealed junction box with lead wires for easy installation in the field * Highly rated lead wiring to prevent premature aging of covering and insulation * Easy to install * Torsion and corrosion resistant anodized aluminum frame ensures dependable performance under harsh weather conditions * Junction box with 15' (4.6m) cable with stripped leads * 6 mounting holes per module * 1 grounding hole * Blocking diode Performance Warranty GSE Solar Power Modules performance warranty provides: * 2 year limited warranty on workmanship and materials * 10 year limited warranty on power output Electrical Features Maximum Power: 6 watt Current at Operating Voltage: 0.38 amps Operating Voltage: 15.8 volts Open Circuit Voltage (Voc): 23 volts Short Circuit Current (Isc): 0.45 amps Temperature Coefficient for Power: -0.5%/C Temperature Coefficient for Voltage: -0.5%/C All data at Standard Test Conditions (STC) Rating tolerance +- 15% Quality Assurance * High humidity cycling test * Extensive field exposure test * Light exposure test Made in USA Dimensions: 17.88" x 9.0" x 0.83" / 454 x 228.5 x 21.0 mm Weight: 3.5 lbs / 1.3 kg Two Seas Side Mounting Information Side of Pole One module: UNI-SA/13.0 Two modules: N/A Top of Pole One module: N/A Two modules: N/A
