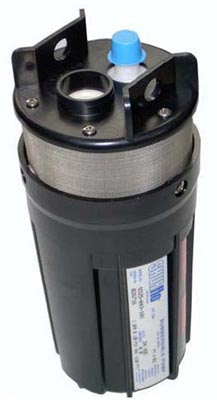

ShurFlo 9300 Water Pump 9325-043-101 This pump is rugged, durable and built to last. The Shurflo 9300 delivers a steady 112 GPH (422 LPH) at its maximum depth of 230 feet (70M) when supplied with 24 VDC. Its unique watertight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering, irrigation, pond areation, remote homes and cabins. This submersible DC pump was designed for use in wells, ponds, cisterns and streams. All components except the diaphragm and case are constructed of stainless steel and brass. The model 9300 can be easily rebuilt in the field without special tools. The newly improved diaphragm is now rated at 2500 to 4000 operating hours. Designed for flow rates from 30 to 111 gallons per hour (or up to 1000 gallons per day), it will deliver water from up to 230 feet. The Model 9300 will operate directly from one or two 48 watt or larger PV modules, or can be run off a 12 or 24 volt battery. If operated in PV direct mode, be sure to use the Linear Current Booster LCB-8A or one of the two Shurflo pump controllers. For twice the water, they can be installed in pairs. They can also be installed in the same well as an AC pump, to provide extra backup. In many areas of the US a complete solar water pumping system will cost under $2,000 if your water is 225 feet or less.Quite a few of the 9300's that we sell are replacing windmills, as the price of a complete pumping system is often cheaper than buying or repairing the windmill head. Features Water blocked electrical connector. Quick disconnect - no splicing needed. Accepts a variety of jacketed cables. Strong, yet lightweight - only 6 pounds. Corrosion-proof housing with stainless-steel fasteners. Dry running capability without pump damage. Internal bypass feature for pump protection. Long life, 24/12 volt DC operation. Easily repaired in the field. 50 mesh stainless steel inlet screen. State-of-the-art solid diaphragm. For 4" wells or larger. Technical Specifications Pump design: Positive displacement 3-chamber diaphragm pump Cam: 3 degree Motor:Permanent magnet, thermally protected, 24 volts DC, 4.1 amps maximum. (P/N 11-175-00) Internal bypass: 105-110 PSI Maximum lift: 230 feet (70 meters) Maximum submersion: 100 feet (30 meters) Outlet port: 1/2" (12.7 mm) barbed fitting for 1/2" ID tubing Inlet: 50 mesh stainless steel screen Net weight: 6 lbs / 2.7 Kg Dimensions: 3.75" x 12" / 95 x 305 mm
