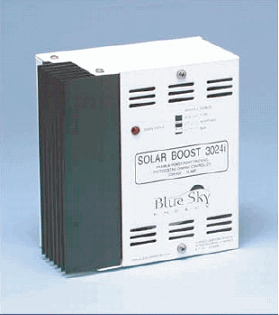

SPECIFICATIONS Solar Boost 3024i Output Current Rating Nominal Battery Voltage 12 / 24VDC PV Input Voltage 57VDC maximum Power Consumption 0.35W Typical standby • 1.0W Typical charge on Charge Algorithm 3-stage Bulk/Acceptance/Float (Full charge can be based on net charge current matched to battery amp-hours ) Acceptance Voltage 14.4VDC (range 14.0 – 14.8VDC , 10.0 – 40.0VDC ) Float Voltage 13.4VDC (range 13.2 – 13.8VDC , 10.0 – 40.0VDC ) Equalization Voltage 15.2VDC (range 10.0 – 40.0VDC ), automatic or manual operation Single output field configurable as either: 20 Amp load controller –or– 2 Amp auxiliary battery charger 2 Amp typical, same charge voltage as primary battery Auxiliary Output Function Aux. Battery charge Load Control 20 Amp maximum; ON @ ≥12.6VDC / OFF @ ≤11.5VDC (Range 10.0 – 40.0VDC , or net battery amp-hours ) Temperature Compensation Optional temperature sensor adjusts charge voltage setpoints based on measured battery temperature, -5.00 mV/°C/cell correction factor (Range -0.00 – -8.00 mV/°C/cell ) • sensor range -60 – +80°C Power Conversion Efficiency 97% Typical @ 28 Volt 24 Amp Output Cabinet Dimension 6 7/8”H x 6 5/8” W x 3 3/8”D (17.4cm x 16.8cm x 8.59cm) Analog Input Accuracy / Range Battery & Aux. Battery voltmeters, 40.0VDC ±0.50% FS • PV voltmeter, 60.0VDC ±0.50% FS Input/Output ammeters 35.0A ±0.50% FS Environmental -40 – +40°C, 10 – 90% RH non-condensing Weight: 5 lbs. / 2.27kg Communication uses Blue Sky Energy’s proprietary IPN Network interface. It allows up to 8 IPN capable controllers to set up and operate as a single machine, share a common battery temperature sensor, and share an IPN-Remote or IPN-ProRemote display. Simple twisted pair cable interface with no special communication hardware required.
