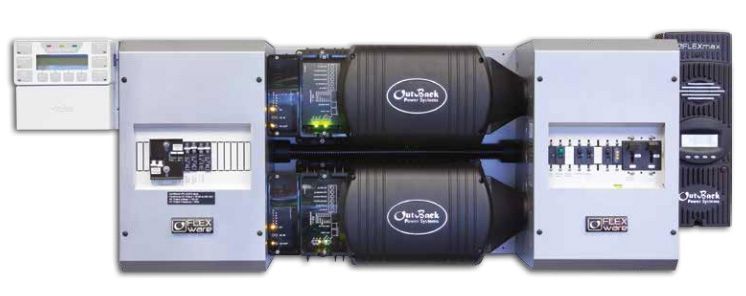

Outback FP2 VFXR3524A-01 - Pre-wired dual-inverter system, 7.0 kW 120/240 VAC, 24 VDC

ONLY: $8,549.85
Item Number: 033-04271

| More



OutBack Power FLEXpower Multi-FXR inverter Pre-Wired Power Systems

The FLEXpower pre-wired power panels integrate inverter/chargers, FM80 or FM100 charge controls, and all of the essential protective devices in an easy-to-install, fully pre-wired and factory-tested system. The FLEXpower is applicable for either grid-tied or off-grid applications with modest power requirements, such as homes, light commercial or larger backup-power systems. Utilizing a compact all-on-one mounting plate design, they are fully pre-wired and factory tested. A FLEXpower can be mounted in either a horizontal or vertical orientation to allow installation in space-limited locations. There are also mounting locations for an AC GFCI Type B outlet and additional DC and AC breakers.

FP systems with VFXR or FXR inverters can be used for either grid-tied or off-grid applications and have the capacity to work with a variety of batteries, as well as advanced OutBack features including Grid Zero and Offset modes.

Each FP2 is designed for 120/240 VAC single-phase output. Each power panel includes two inverter/chargers, two FM80 or FM100 charge controllers, FlexNetDC, AC and DC wiring boxes, a MATE3s, HUB10, and an AC/DC Surge Protector, X-240 transformer (not on FXR systems), inverter and controller breakers with GFDI,
and an AC Input-Output-Bypass Assembly. Dimensions are 59"W x 21"H x 13"D. Weight is 260 lbs.

Each FP3 is designed for 120/208 VAC three-phase output. Each power panel includes three inverter/ chargers, three FM80 or FM100 charge controllers, FlexNetDC, AC and DC wiring boxes, a MATE3s, HUB10, and an AC/DC Surge Protector, inverter and controller breakers with GFDI, and an AC Input-Output-Bypass Assembly. Dimensions are 59"W x 46"H x 13"D. Weight is 430 lbs.

Each FP4 is designed for 120/240 VAC single-phase output. Each power panel includes four inverter/ chargers, four FM80 or FM100 charge controllers, FlexNetDC, AC and DC wiring boxes, a MATE3s, HUB10, and an AC/DC Surge Protector, X-240 transformer (not on FXR systems), inverter and controller breakers with GFDI, and an AC Input-Output-Bypass Assembly. Dimensions are 59"W x 46"H x 13"D. Weight is 520 lbs.

The inverters in the FLEXpower Multi-inverter systems are listed to UL1741 SA (Supplement A) specifications for Grid Support Utility Interactive Inverters.


Length 47.5  IN
Width 21.5  IN
Height 20.5  IN
Weight 282.0  LB
Manufacturer Part Number FP2 VFXR3524A-01
Description Pre-wired dual-inverter system, 7.0 kW 120/240 VAC, 24 VDC
Rated Power 7000.0
Voltage 24
Charge Controller FM80
System Controller Mate3s
NEMA Rating NEMA 1 (indoor)
